Waterproof Flexiable Solar Panel 100W 12V Monocrystalline With Charge Controller

Minimum Order Quantity : 100pcs Payment Terms : T/T, Western Union
Place of Origin: China Brand Name: Future Tech

Detail Information

Product Size: 1050*540*2.5mm Optimum Power: 125W±0.25W
Operating Voltage: 17.5V±0.3V Operating Current: 7.1A±0.15A
Short Circuit Current: 7.3A±0.15A Open Circuit Voltage: 21V±0.8V
High Light:

Waterproof Flexiable Solar Panel

,

Flexiable Solar Panel With Charge Controller

,

12V Flexiable Solar Panel

Product Description

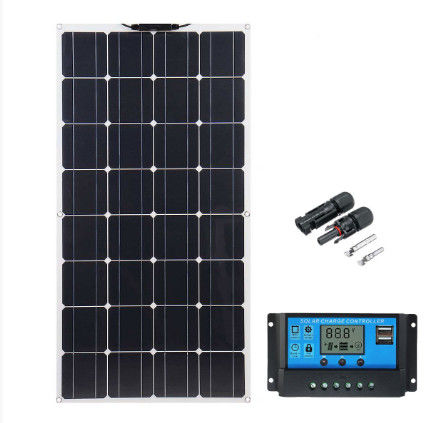

Waterproof Solar Panel Battery Charger 100W 12V Mono-crystalline Solar Power Bundle Kit with Charge Controller

[About this item]

Reliable & Professional - The semi flexible solar panel is unlike traditional old one. It is made with new innovative encapsulation material to protect the cells inside the panel and provide a longer life span. It is so strong that people could even walk on it and the fragile solar cells inside still remained intact. This has never been seen before (Note: the solar panel needs to be placed on smooth floor when it is tested)

Good Bendability - The solar panel can be curved to a maximum 30 degree arc, allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers, yacht, motorhome, Roofs, or any other irregular surface. High module conversion efficiency, fast and inexpensive mounting.

High Conversion Efficiency - High efficient monocrystalline solar cell, adopt unique back contact technology and remove electrodes on the solar cell surface that block the sunshine to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary. The transparent dots on the surface can gather sunlight from different angles, this unique feature can sufficiently utilize sunlight and increase solar conversion rate.

Durability & Waterproof - High temperature resistance, easier to clean. The solar panel made of advanced water resistant material, the junction box is sealed and waterproof, the internal blocking diode which prevents reverse current drain at night. Can be used for many different applications,such as for use in RVs, caravan, boats, tents, trailers, cabin, etc.

Versatile - This solar panel is easy to transport, hang, and remove, 6 stainless eyelets at the edges for easy installation. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer. Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile



Specification :





Temperature coefficient voltage: (0.065±0.015)%/℃
Temperature coefficient current : -(160±10)mA/℃
Temperature coefficient power : -(0.5±0.05)%/℃
Maximum system voltage : 1000V
Ambient temperature : -40°C - +85°C (-40°F to 185°F)
Wind resistance : 50psf (2400 pascals)
Snow resistance : 113PSF (5400 Pascals)
Hail impact : 25mm (1 inch) at 23 m/s (52mph)



Waterproof Flexiable Solar Panel 100W 12V Monocrystalline With Charge Controller 0Waterproof Flexiable Solar Panel 100W 12V Monocrystalline With Charge Controller 1Waterproof Flexiable Solar Panel 100W 12V Monocrystalline With Charge Controller 2

Compact and Reliable - The 100W 12V Monocrystalline solar panel delivers a stable output of an average 500Wh of electricity per day (depending on sun availability). With its compact solar cell arrangement, this renogy 100w solar panel weighs only 14.1 lbs and is 8-10% lighter and smaller than conventional rigid solar panels.



Superior Quality and Material - All Renogy solar panels are made from 100% EL-tested Grade A+ solar cells to provide the highest power conversion efficiency and prolonged lifespan. This 100 watt solar panel is also equipped with PERC cells to deliver an excellent cell efficiency of 22%.



Advanced Solar Cell Tech and Panel Structure - Renogy solar panels adapted the newest 9 Bus-bars cell tech and Half-cell structure, allowing the full-size solar cell to be cut in half and closely arranged for space usage maximization. Increase the cell receiving surface while reducing current and resistance loss with a thinner ribbon design.



Built to Last - This all-weather monocrystalline solar panel can handle snow, rain, and heat for decades with IP65 protection. Renogy uses low iron-tempered glass and corrosion-resistant aluminum frames with polyamide corner support to ensure this panel solar can perform and withstand all weather conditions.



Fast and Easy Installation - 20 pre-drilled holes on the back of the solar panels 100w allow for quick mounting, which is ideal for off-grid applications and are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.
Proven Durable Quality - 10-Year Workmanship Warranty. Over 80% Output at 25 Years.
