2. Major technical specifications:
| Features |
KL4.5LM Specifications |
| Rated capability |
4.5Ah(li-ion battery) |
| Rated voltage |
3.7V |
| Continuous discharging time |
>15h |
| Main light LED Working voltage |
3.2V |
| Main light LED Working current |
0.35A |
| Main light Power |
3W |
| Main light Luminous flux |
>100Lm |
| lamp lighting degree (distance 1 meter) |
>8500Lux (at the starting time)
>6000Lux (after 10 hours working time)
|
| Main light Usage life hour |
>30000h |
| Weight |
<210g |
| Accessory light Usage life hour |
100000h |
| Short circuit protect time |
<15ms |
| Usage duration of battery (recharges) |
1000 recharges (in reasonable working condition) |
| Charging time |
≤ 8hours |
| Charing voltage and current |
5V@1000mA |
3. Operation procedure
3.1
Main LED and backup LED ON/OFF : Press lamp button( a lamp mark on the button)
one time , Main LED on , Press Lamp button again , Main LED off , backup LED on ,
Press lamp button again , back LED off . press lamp button for next cycle.
3.2

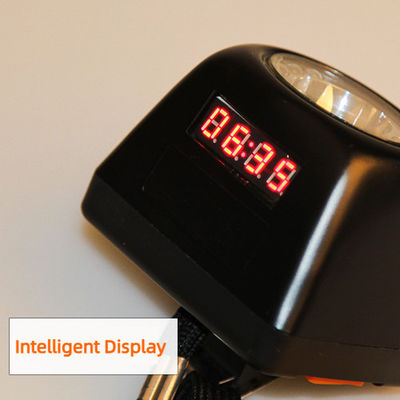

Display cap lamp number, time ,capacity : Press clock button( a clock mark on the
button) one time, display lamp number , Press clock button again , display current
time, Press clock button again , display current battery capacity (four squares is full ,
three squares means 3/4 capacity , two means 1/2 capacity, one means 1/4 capacity,
one square blink per 20 sec. Means have to be charged again and the battery
capacity only can light for about one hour) , press clock button again , all LED digit off ,
if there are no button be pressed , after 20 sec. The LED digit will automatically turn
off.
3.3
Clock set : Press clock button and hold about 3 sec.s , the hour will blink , release
clock button , press lamp button to set the hour , press clock button again , minute
high bit will blink , press lamp button to set the minute high bit , press clock button
again , minute low bit will blink , press lamp button to set the minute low bit, press
clock button again to confirm and finish clock setting.
3.4
Cap lamp number set : For management of enterprises only ,ask agent for help.
4

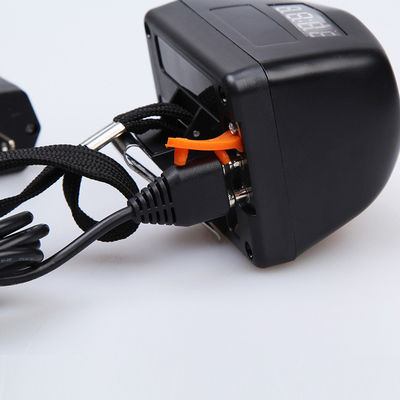

Charging :
4.1
Charger input: AC100-240V 50-60Hz , 0.3A
4.2
Charger output : DC 5V@1000mA
4.3

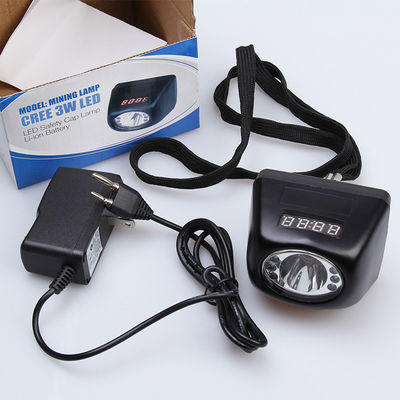

Manufacturer provide charger to user , please use it only
4.4
When long-term storage is needed , charging should be done within two months.
